Detailed data :
| Brand : | Mitsubishi | Model : | HG-SR152J |
| Input : | 3AC | Voltage : | 112v |
| Current : | 9.4A | Power : | 1.5kw |
| Weight : | 7.3kg | r/min : | 2000 |
| Freq : | 0-167Hz | mV/min-1: | 49 |
| Temp : | 40℃ | IP: | 67 |
HG-SR152J Mitsubishi 1.5kw Power Digital Analog AC Servo Motor
Characteristics and specifications of HG-SN102BJ-S100 electromagnetic brake
[Form (Note 1)] Non excitation action type (spring brake) safety brake
[Rated voltage (Note 4)] Water quality analyzer
[Power consumption] 20 [W] at 20 ° C
[Coil resistance (Note 6)] 29 Ω
[Inductance (Note 6)] 0.8H
[Brake static friction torque] 8.5N · m
[Release delay time (Note 2)] 0.04s
[DC cut-off braking delay time (Note 2)] 0.03s
[Allowable braking workload] 400J per brake, 4000J per hour
Shake of the brake on the motor shaft (Note 5): 0.2~0.6 degrees
[Brake service life (Note 3)] 20000 brake cycles, 200J of work for one brake cycle
[Example of selecting surge absorbers used (Note 7, 8)]
TND20V-680KB at 125V suppression voltage, TND10V-221KB at 350V suppression voltage
remarks
1. There is no manual release mechanism. Please provide a DC 24V power supply and electrically release the electromagnetic brake.
2. The value of the initial suction gap at 20 ° C.
3. Braking can cause wear on the brake friction plates, which can increase the brake clearance but cannot be adjusted.
Therefore, the period until adjustment is necessary is the service life of the brake.
4. Please be sure to prepare the power supply for the electromagnetic brake.
5. This value is the design value. Not a guaranteed value.
Condition:
A brand-new, unused, unopened, undamaged item in its original packaging (where
packaging is applicable). Packaging should be the same as what is found in a
retail store, unless the item is handmade or was packaged by the manufacturer
in non-retail packaging, such as an unprinted box or plastic bag. See the
seller's listing for full details.
Terms:
We ships worldwide and accepts T/T and Paypal.
All items are subject to availability and passing our QA testing and
inspection.
Turnaround Time:
Standard order processing is 1-2 business days plus shipping method chosen.
Rush and off-hours service available for an additional fee.
Packaging and Handling:
Items are safely packaged in custom shipping cartons for protection.
Shipping:
We ship worldwide use UPS,FedEx, DHL or Truck Freight when meeded.
Call to use a shipping service other than the ones listed.
International Customers are responsible for all Customs fees, VAT and other
fees applied by their respective countries.
All shipments are fully insured.
Our advantage Products:
【Yaskawa】Servo Drive / Servo Motor
【Mitsubishi】Servo Drive / Servo Motor
【Honeywell】Module DCS / PLC
【Emerson】DeltaV Module / Servo Motor
【ABB】Input Output Module
【AB】Module / Touch Screen
【Rosemount】Pressure and Temperature Transmitter
【Yokogawa】Pressure Transmitter
【GE】IC69 Series PLC/ Fanuc Servo Motor and Drive
(Modicon,SMC,SICK,NORGREN,Siemens etc.)
Linture Technology Co,. Ltd
Contact person: Vivian
E-mail: linture0319@163.com
Cellphone: +0086-18026552038
Wechat:18026552038
WhatsApp:+86 18026552038
Tag:electric servo drive,
ac servo drive,
ac servo pack
|
|

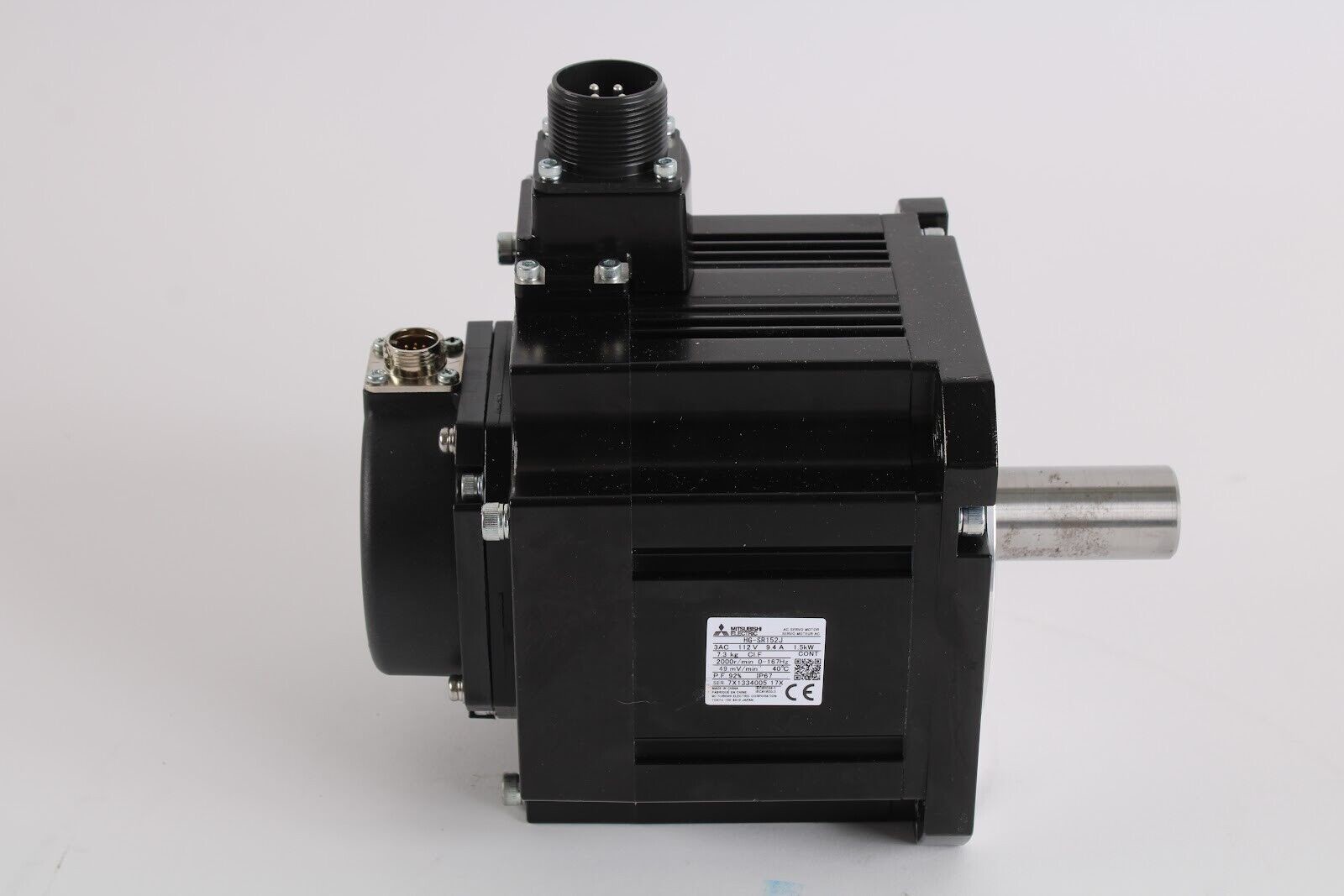

HG-SR152J Mitsubishi 1.5kw power digital analog AC servo motor Images
|
